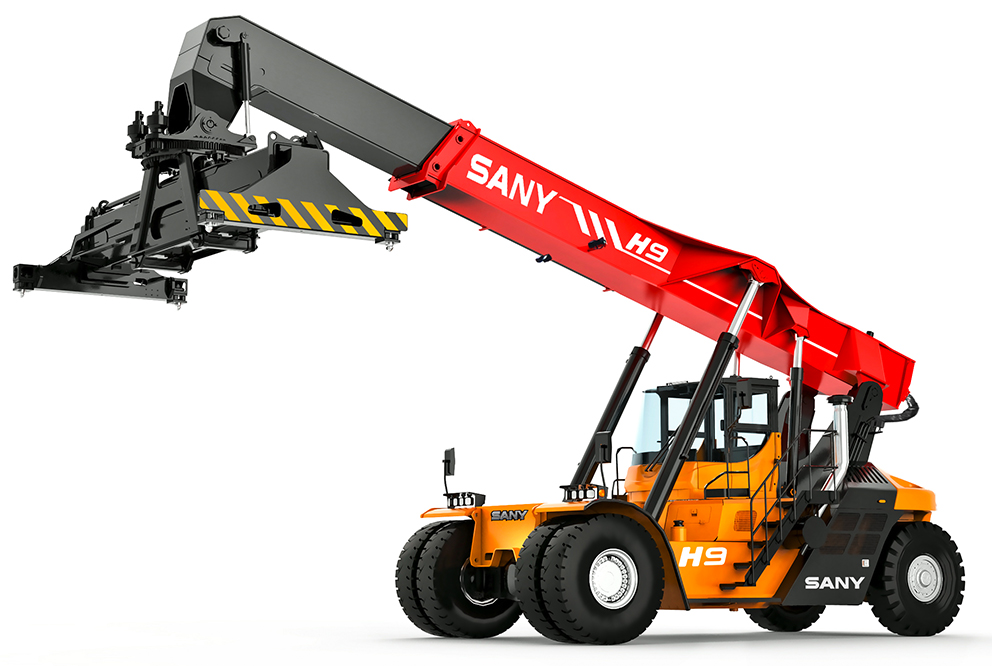

«H9» Hybridteknologi bidrar til å lage verdens mest energieffektive reach stacker. Ved senking av last akkumuleres energi i egne tanker, som igjen benyttes ved neste løft. Denne teknologien bidrar til reduserte utslipp og opptil 15% kostnadsreduksjon i forhold til standard sammenlignbar Reach Stacker. Kostnadsreduksjonen oppnås ved redusert drivstofforbruk, samt økt effektivitet.

Teknologien:

  • Regenerering av løfteenergi ved nedsanking av last, muliggjort ved ekstra løftesylindre, samt store hydraulikkakkumulatorer. Denne energien kan da benyttes til neste løft.
  • SANYs lettvektsgrabb på bommen gir reduksjon i motvektsbeaovet.
  • Hydraulisk system med vektindikator som gir riktig mengde effekt for hver manøver operatøren gjør.
  • Ca 15% besparelse pr containerløft (inkludert diesel, vedlikehold og maskinavskrivning).
  • Hydropneumatisk system for regenerering med toplift spreader.
Last ned brosjyre
Last ned informasjonsfolder om H9 Hybridsystem
Tekniske høydepunkt

Løftekapasitet første/andre/tredje rad: 45 t / 31 t / 15 t
Akselavstand: 6,000 mm
Motor: Volvo Penta TAD 1171VE
Utslippsnivå: EU Tier IV
Motorkraft: 265 kW ved 1,450-2,100 rpm
Dreiemoment: 1,785 Nm ved 1,260 rpm
Gir: Dana TE30 – 5F/3R, PowerShift fully automatic gearbox with torque converter and optional Lock-out, Energie-Rückgewinnungs-System für Senken/Heben des Auslegers
Vekt: 71,500 kg
Max. løftekapasitet: 45 t

Funksjoner og fordeler
  • Approx. 15% savings in machine costs per container (including fuel, maintenance, machinery depreciation)
  • Hydropneumatic system for boom energy recovery with toplift spreader
  • All main equipment sourced from European suppliers = high quality
    • Volvo Motor, Dana-gearbox, Kessler front axle, Parker hydraulics
  • Steel structure components developed in China and Germany
    • Testing and manufacture in China ensures durability
    • Series production improves assembly quality
  • A wide variety of equipment features is already provided in standard machines, e.g. hydraulically movable cab, reversing camera, air conditioning, responsive joystick control, color display, adjustable steering column
  • Optional movable counterweight supplies 1 tonne of additional lifting capacity
  • SANY five-year guarantee*

* with participating partners

Tekniske data
DIMENSIONS
Overall length 11,340 mm
Wheelbase 6,000 mm
Height incl. rotating beacon 4,770 mm
Ground clearance 300 mm
Height to top of boom 4,570 mm
Seat height 2,504 mm
Overall width 6,042-12,175 mm
Total width at front 4,188 mm
Total width at rear 3,310 mm
Track width at front 3,033 mm
Track width at rear 2,790 mm
Movable counterweight stroke 500 mm
Turning circle 8,285 mm
Travel of movable cab 11,300 mm
Aisle width with 20′ container 13,600 mm
Travel of movable cab 2,500 mm
POWERTRAIN
Engine type VOLVO TAD 1171VE
Rated power 265 kW/2,100 rpm
Max. torque 1,750 Nm/1,260 rpm
Emission standard EU Tier IV
Gearbox type DANA TE30
No. of gears F5/R3
Drive axle Kessler D102
Tyre size 18.00×25
WITH TOPLIFT SPREADER SANY SDJ 450H9
Side thrust +/- 800 mm
Rotation angle +/- 105/195 °
Mechanical slope compensationh +/- 2/2 °
Spreader weight 7,200 kg
Weight increase with PPS30′ 400 kg
BOOM
SANY toplift spreader lifting height 15,100 mm
SANY spreader min. height 1,120 mm
Boom angle 0-60 °
WEIGHT WITH SANY SDJ 450G TOPLIFT SPREADER
Overall weight 71,550 kg
Axle load when empty (front/rear) 33,440/38,110 kg
Axle load at max. load in L1 (front/rear) 92,490/10,060 kg
Axle load at max. load in L2 (front/rear) 99,660/16,890 kg
Axle load at max. load in L3 (front/rear) 75,770/10,780 kg
OUTPUT
Max. lifting capacity 45,000 kg
Stacking height with 9’6″ containers 5
Stacking height with 8’6″ containers 5
Lifting speed unladen/loaded 420/250 mm/s
Lowering speed unladen/loaded 500/400 mm/s
Ground speed unladen/loaded 25/21 km/h
Climbing power unladen/loaded 39/28 %
Noise level inside cab 72 dB(A)
Noise level outside cab 104 dB(A)
Tractive force 335 kN
SERVICE REFILL CAPACITY
Hydraulic oil 900 l
Brake oil 150 l
Gearbox oil 65 l
Axle oil 68 l
Final drive oil 2×13.5 l
Coolant 1,6 l
Diesel tank 520 l
AdBlue tank 45 l
Engine oil volume 36 l
Engine coolant 64 l
